Jak Max 30T Archer Axe Log Splitter
IN STOCK
$2,899 inc GST

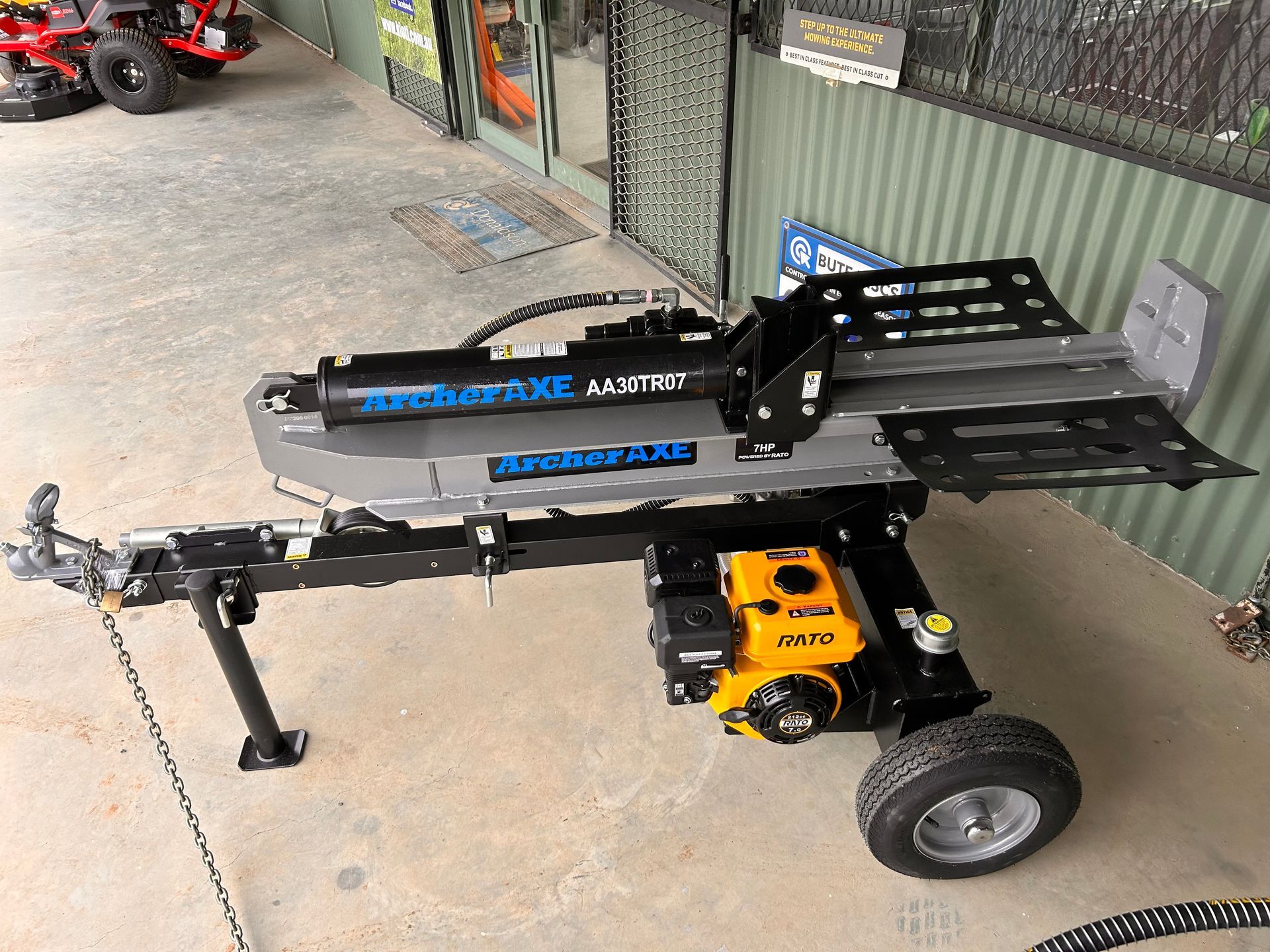

Archer Axe - 30 ton vertical/horizontal log splitter fitted with a RATO R210 7hp engine.
- 2 side log plates
- High quality jockey wheel
- Tow hitch
- 12.2 second cycle time
- 12 month warranty
Technical spec:
Maximum splitting force: 30 Tons
Engine: 7hp, 212cc RATO R2102
Maximum log length: 25” (635mm)
Cycle time, down & back: 12.2 seconds
Cylinder: 4-1/2” dia x 24” stroke
Pump, two stage: 15 GPM
Wedge, heat treated steel : 9” high
Beam: 9” foot plate
Hydraulic capacity: 22 litres max.3
Valve: Auto return with adjustable detent
Wheels: D.O.T. approved 16” O.D road tyres
Coupler:
2” ball with safety chains
