gessner

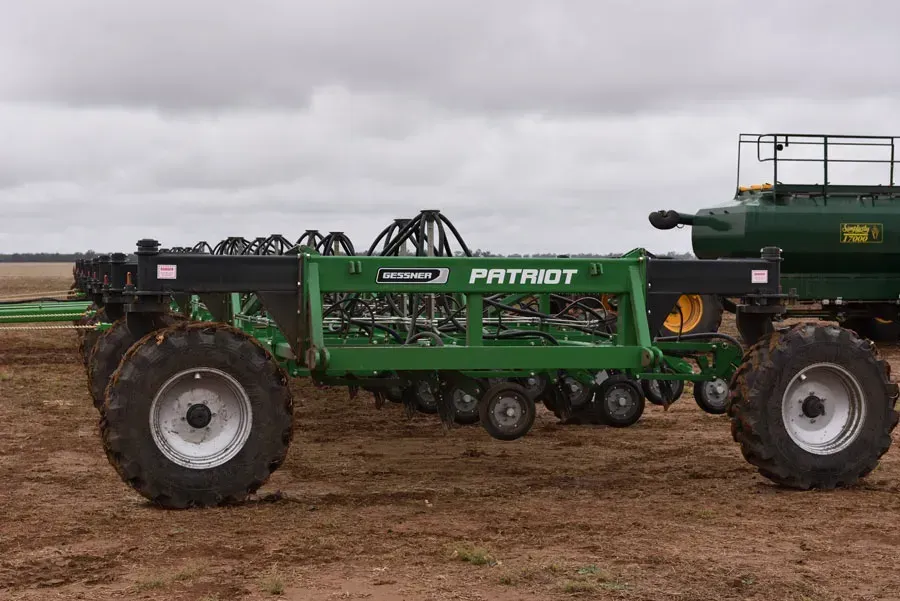

Gessner Patriot Planter
ORDER NOW
- Hydraulic break-out ranging from 300lb to 700lb
- An underframe clearance of 900mm
- Heavy-duty fabricated parallelogram with a 500mm range of travel; 200mm down, 300mm up (from working height)
- A range of press wheel widths,profiles and compounds with packing pressure up to 200lb
- Versatile precision shank with single, dual, paired-row and liquid injection outlet options
- Seeding depth of up to 150mm, adjustable in 6mm increments.
- Heavy-duty dual acting cylinder featuring hard-chrome shafts
- Hardened chrome pins and oil infused bushes in all pivot points
- Planter frame supported by large floatation tyres mounted on castor frames at the front, and fixed mounts at the rear
- 300mm transport clearance
- Grade 8 high tensile fasteners
- Unit weight 80kg

FLOATING HITCH FRAME CONFIGURATIONS
- 12m 3 Section Single Fold.
- 18m 5 Section Single Fold.
- 18m 5 Section Double Fold.
- 24m 5 Section Single Fold.
- 24m 5 Section Double Fold.
- 36m 7 Section (with Optional End-tow).
Each frame features three 100mm x 100mm x 9mm toolbars which are designed to accommodate row-spacing of 250mm, 300mm, 333mm, 375mm, 400mm or 500mm.
Call now for more information!
